Self Locking M19 Connector Waterproof IP67 Electrical Female Connector

Name: Self Locking M19 Connector Waterproof IP67 Electrical Female Connector
Brand: SHANGWEN
Price: 2.20 USD

Quality Self Locking M19 Connector Waterproof IP67 Electrical Female Connector wholesale

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SW19-12K-LT

Packaging Details : 10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)

MOQ : 2 pieces

Price : $2.20/pieces 2-99 pieces

Name : M19 Connector Waterproof

Type : SW19 Screw tooth series

Application : Industrial

Gender : Female

Industrial electronics : accessories

Features : Push-pull Self-locking Connection

Multiple Cores : 2,3,4,5,6,9,3+9 pin support

Contact Now

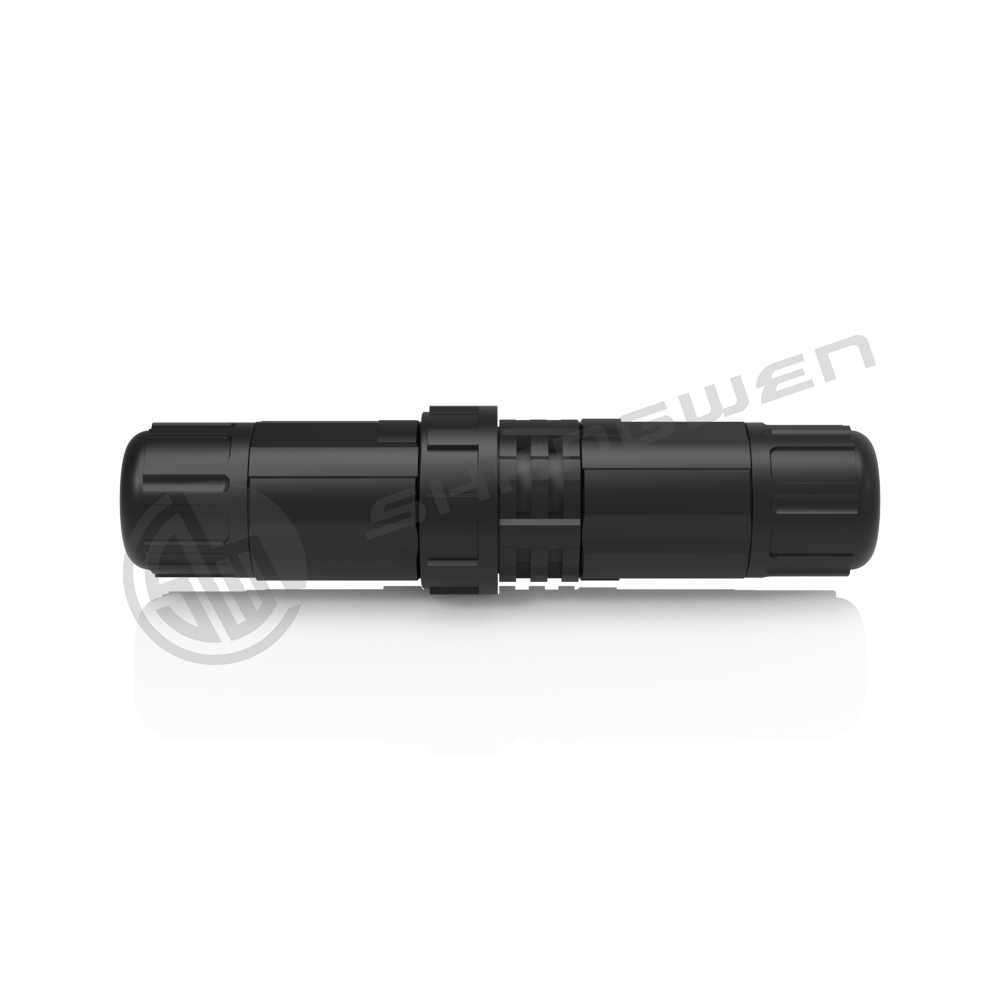

New Design Industrial Screw Tooth Type Black Shell 3+9 Pin Female Plug M19 Connector

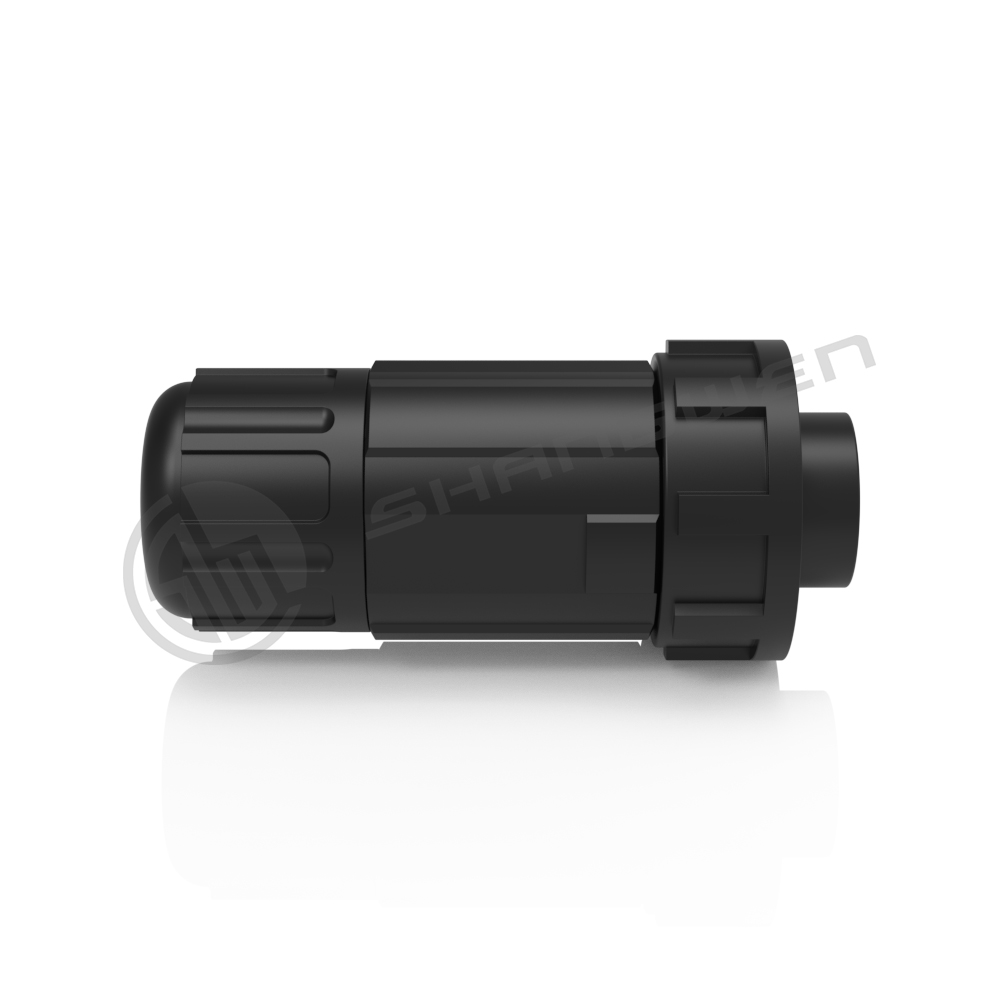

Model: SW19-12K-LT (3+9 pin female plug)

☑Quick, simple self locking system
☑Connect reliably
☑Small size of product

☑Multi-style inner core design to meet the needs of various industries

☑Protection level: used in outdoor scenes, protection level up to IP67
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios

☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof

☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal

transmission and electrical conductivity

Products Description

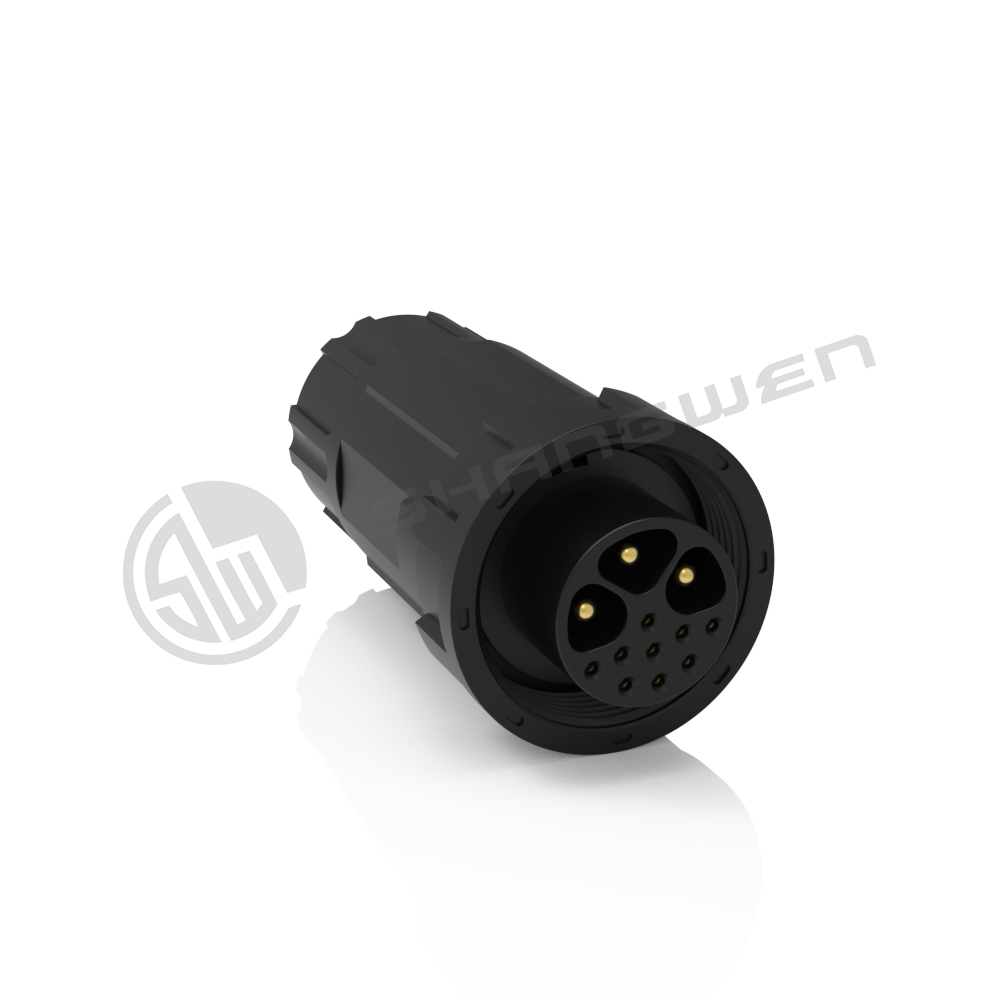

SW19 Screw tooth series-3+9 Pin connector

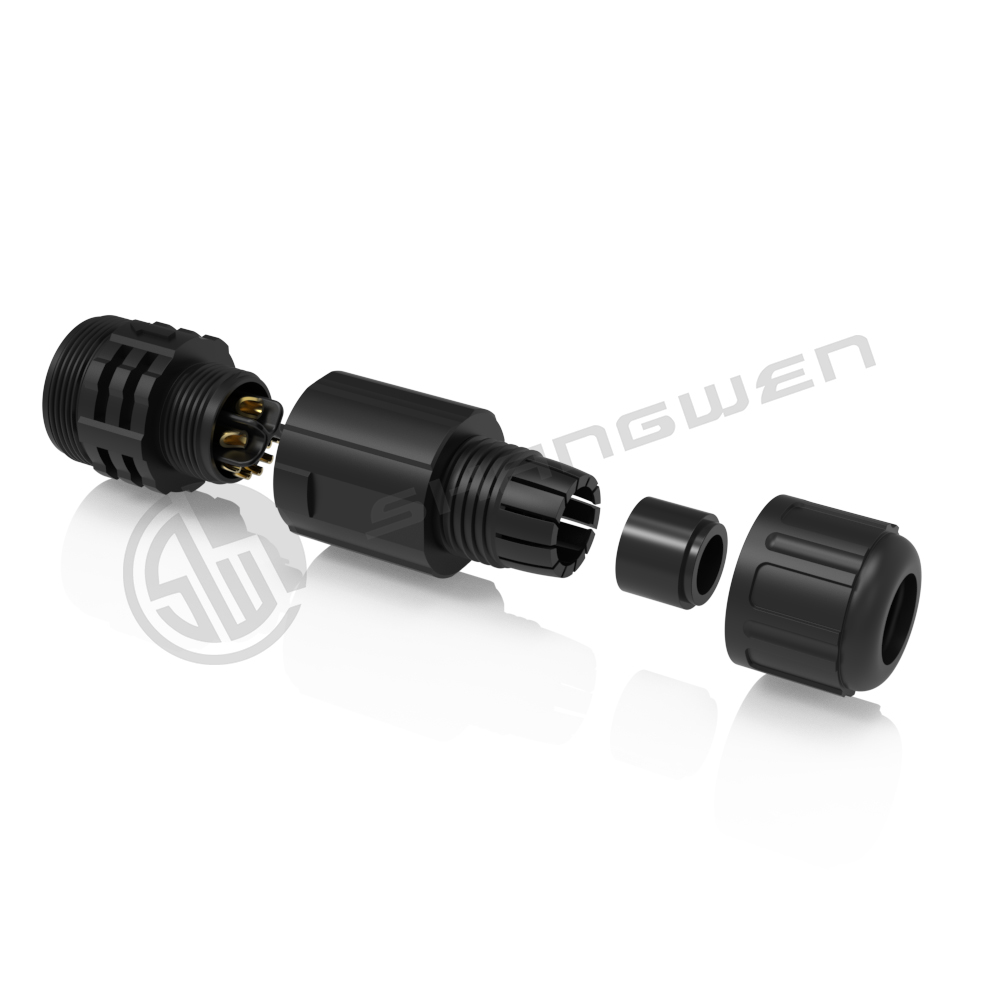

M19 series is an industrial connector, which includes male plug, female plug and male socket.

The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.

The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.

There are two locking methods:

1. Push-pull self-locking connection

2. Plastic screw connection, both locking design is very reliable.

Self Locking M19 Connector Waterproof IP67 Electrical Female Connector

1. Electrical parameters

Contacts NO.	3+9 pin
Rated current	5A
Rated voltage	60V AC
Withstand voltage	125V
Insulation resistance	≥100mΩ
Contact resistance	≤10mΩ

2. Mechanical parameters

Service life	＞1000 times
Power line	Φ4.5mm-Φ11mm
Cable size	0.3mm²-2.5mm²(22AWG-12AWG)
Type of terminals	Screw terminal and soldering terminal available

3. Material and environmental parameters

Shell&insulated parts	High performance engineering plastics
Contacts	Copper alloy
Contact diameter	Φ1.0mm
Protection degree	IP67
Flame-retardant grade	UL94-V0
Temperature range	-40℃~105℃

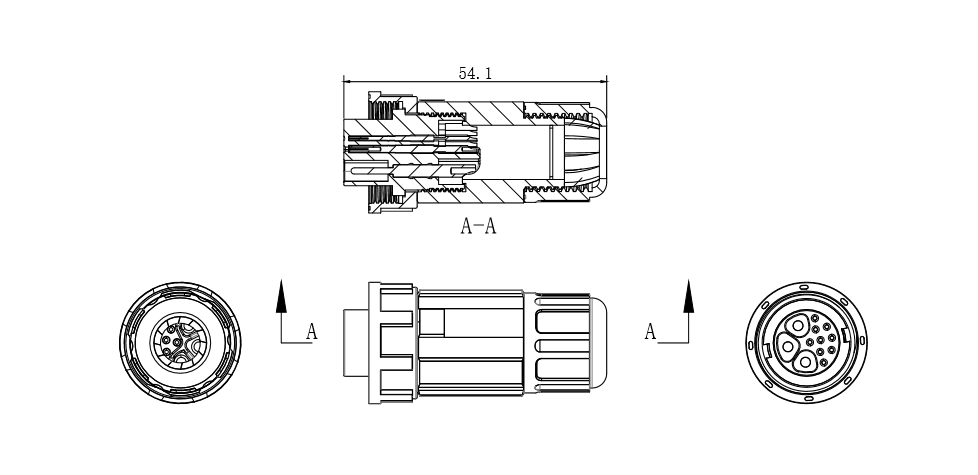

4.Size reference (unit /mm)

Operating reference

Application area
