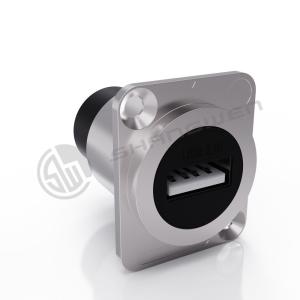

Ip65 Waterproof Panel Mount Connector 4 Pin Audio Video Connector For Data Cable

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SWDU2-SBS

Packaging Details : 10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)

MOQ : 2 pieces

Price : $1.70/pieces 2-99 pieces

Name : Waterproof Panel Mount Connector

Type : usb

Application : data

Industrial electronics : accessories

Waterproof : Ip65

Shell material : Steel

Contact Now

Indoor Outdoor Ip65 Waterproof 4 Pin Audio Video Connector Usb Connector For Data Cable

Products Description

Indoor/outdoor use data connector

1. Electrical parameters

No. of poles 4
Current rating 1A
Voltage rating 30Vac (RMS)
Contact resistance 30m Ω max.
Performance USB version 2.0

2. Materials - Re-wireable and Panel Connectors

Shell material Steel
Shell plating Nickel
Contact material Copper Alloy
Contact plating 30 micro inch Gold
Connector body & locking ring Glass Loaded Polyester
Panel connector Nylon 6
Flammability rating UL94V-0
‘O’rings Silicone
Panel Gasket - round Silicone
Panel Gasket - square Neoprene
Mating cycles 1,000
RoHS Compliant

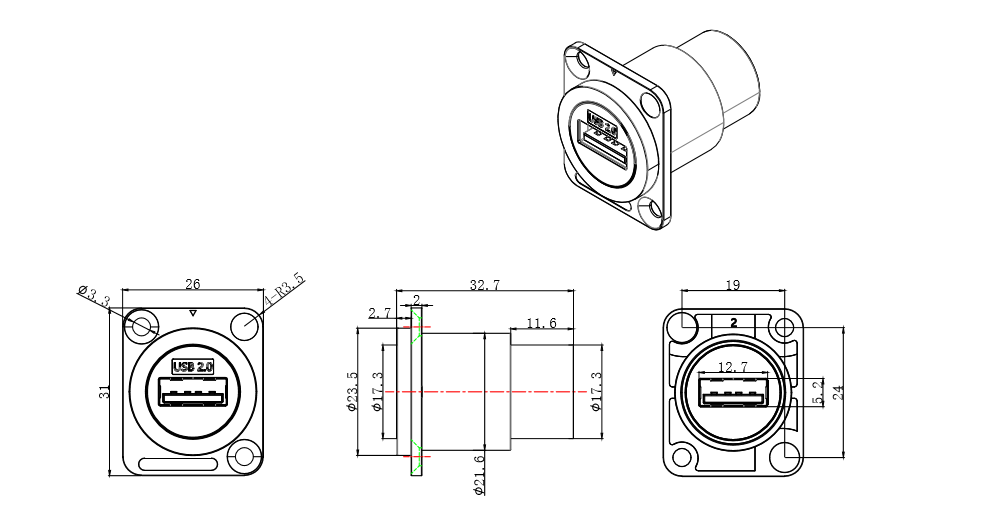

3. Size reference (unit /mm)

Model : SWDU2-SBS

☑4pin shielded suitable for audio and video connection especially audio system of equipment which is computer-based connection.Standard USB format conversion connector Type A-B (B-A)

Ip65 Waterproof Panel Mount Connector 4 Pin Audio Video Connector For Data Cable

Application area

Ip65 Waterproof Panel Mount Connector 4 Pin Audio Video Connector For Data Cable

Company Information

Ip65 Waterproof Panel Mount Connector 4 Pin Audio Video Connector For Data Cable

Patent & Certification

Ip65 Waterproof Panel Mount Connector 4 Pin Audio Video Connector For Data Cable

Exhibition activities

Ip65 Waterproof Panel Mount Connector 4 Pin Audio Video Connector For Data Cable

Packaging reference

Ip65 Waterproof Panel Mount Connector 4 Pin Audio Video Connector For Data Cable

FAQ

1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
