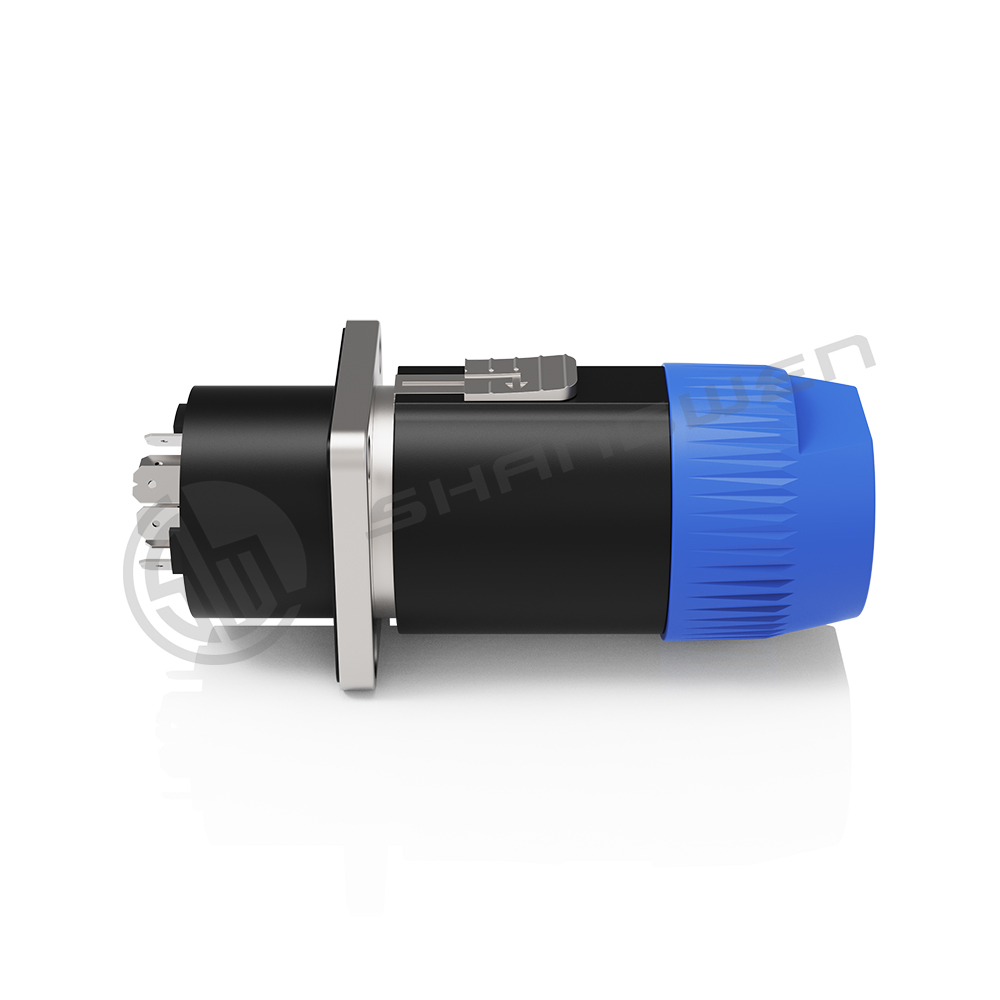

Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SWF8S-2T

Type : Loudspeaker

Application : Audio & Video

Gender : Female

Industrial electronics : accessories

MOQ : 10 pieces

Price : CN¥13.53-21.36/pieces

Contact Now

Products Description
8 pole cable connector, latch lock, chuck type strain relief for cables 8 - 20 mm diameter, 30 A continuous per contact The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
Model：SWF8S-2T
☑Current rating 30 A rms continuous
☑Contacts are touch proof and meet all safety requirements (IEC, UL, CSA)
☑High impact material for insert and housing, long-lasting and dependable
☑Reliable and robust, easy and fast to assemble ☑Accurate and dependable twist lock latching system "Quick Lock" ☑Chuck type strain relief system for secure clamping of cable
Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
1.Product parameters
Connection Type
speakON
Gender
Female
2.Electrical parameters
Contact resistance
≤ 3 mΩ (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 1 GΩ (after dampheat)
Rated current per contact
30 A rms continuous
Rated current per contact
A audiosignal, duty cycle 50 %
Rated voltage
250 V ac
Attention
speakON is NOT to be used as an AC mains or power supply connector!
3.Mechanical parameters
Cable O.D.
8-20mm
Cable retention
≥ 220 N (subject to cable O.D. and material)
Lifetime
> 5000 mating cycles
Wire size
4 mm²
Wire size
12 AWG
Wiring
screw type terminals or soldering
Locking device
Quick Lock (latch)
4.Material parameters
Contact plating
4 µm Ag
Contacts
Brass (CuZn39Pb3)
Insert
PBTP 20 % GR
Locking element
Zinc diecast (ZnAl4Cu1)
Shell
Polyamide (PA 6 30 % GR)
Strain relief
Polyacetal (POM)
5.Environmental parameters
Flammability
UL 94 HB
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
6.Size reference (unit /mm)
Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
7.Assembly reference
Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
Application area
Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
Company Information
Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
Patent & Certification
Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
Exhibition activities
Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
Packaging reference
Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
Payment and logistics
Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
FAQ
Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
